Pressure Welded Steel Grating

Product Introduction:

Standard pressure welded steel grating is formed by welding twisted square steel and several load-bearing flat steel into a whole in a straight and orthogonal manner. The welding adopts a modern fully automatic steel grating pressure resistance welding machine production line to form an open grid type structural plate with good load-bearing capacity.

Product Features:

Standard pressure welded steel grating has become a widely used steel grating product due to its good load-bearing capacity, excellent cost-effectiveness, and simple installation characteristics. Pressure welded steel grating has become the standard platform plate for various industrial platforms, usually used as walkway planks, platforms, cover plates, step boards, etc.

Product Specifications

1. Pressure welded steel grating flat steel: made of Q235A or stainless steel, with ordinary flat type, anti slip tooth type, and section type I.

Common specifications include 20 * 5 mm、25*5mm、25*3mm、32*5mm、32*5mm、40*5mm、40*3mm、50*5mm、65*5mm、75*6mm、100*8mm、100*10mm Wait;

2. Pressure welded steel grating crossbar: made of Q235A or 304 stainless steel round steel, twisted square steel, square steel or hexagonal steel. Twisted square steel is made by drawing and twisting a disc through a square die, and its commonly used specifications include 5 * 5mm, 6 * 6mm, 8 * 8mm, etc.

Various series and specifications of steel grating are composed of the above to meet different loads and other requirements. According to customer requirements, any special specification of pressure welded steel grating can also be manufactured.

Product application:

Pressure welded steel grating is widely used in platforms, walkways, wharf covers, manhole covers, ladders, fences, guardrails, and other fields such as petrochemicals, power plants, water plants, sewage treatment plants, municipal engineering, and environmental sanitation engineering. Pressure welding steel grating is an increasingly important production method in the field of steel grating nowadays. The era of relying solely on manual welding is over. In order to enhance its competitiveness in the industry, it is necessary to have a pressure welding production line and transform into a pressure welding steel grating production plant, which is the path that modern enterprises must take.

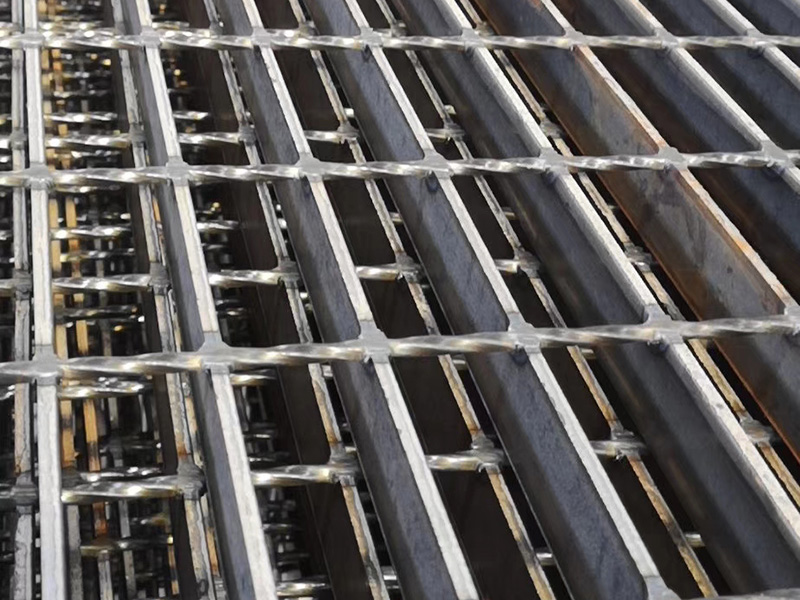

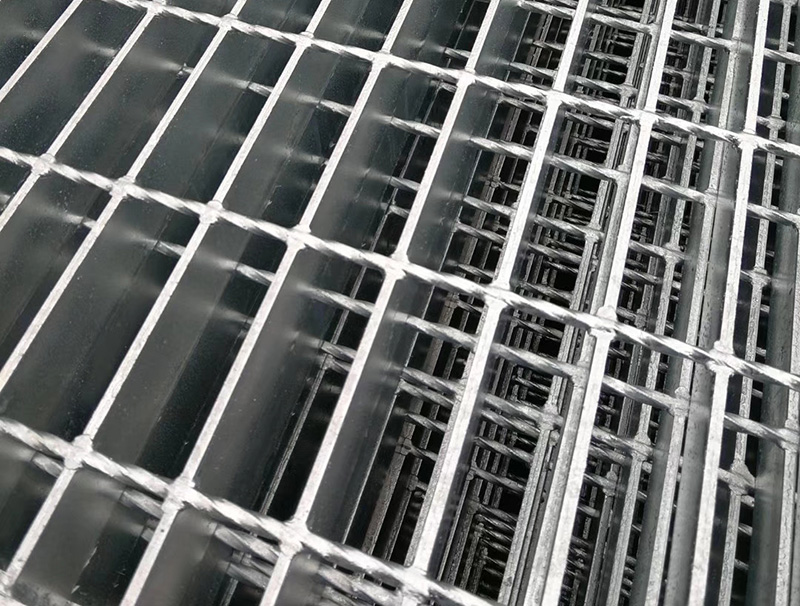

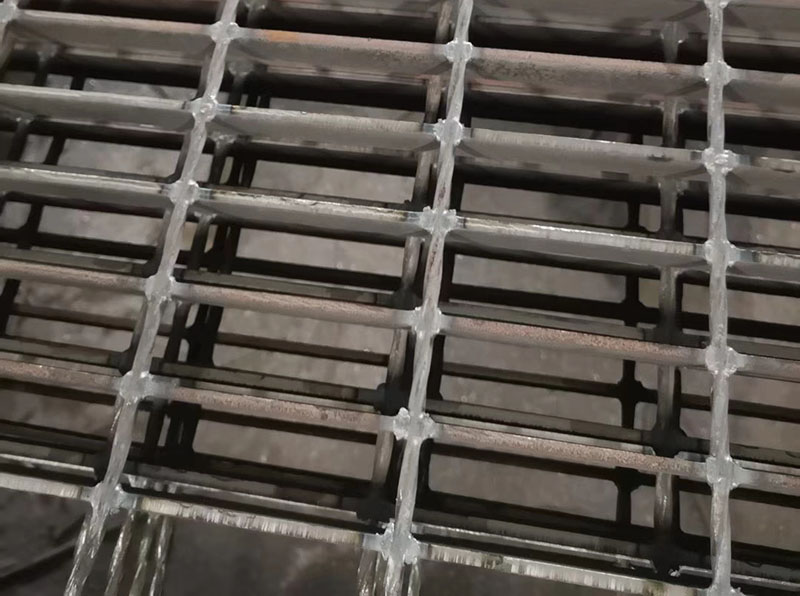

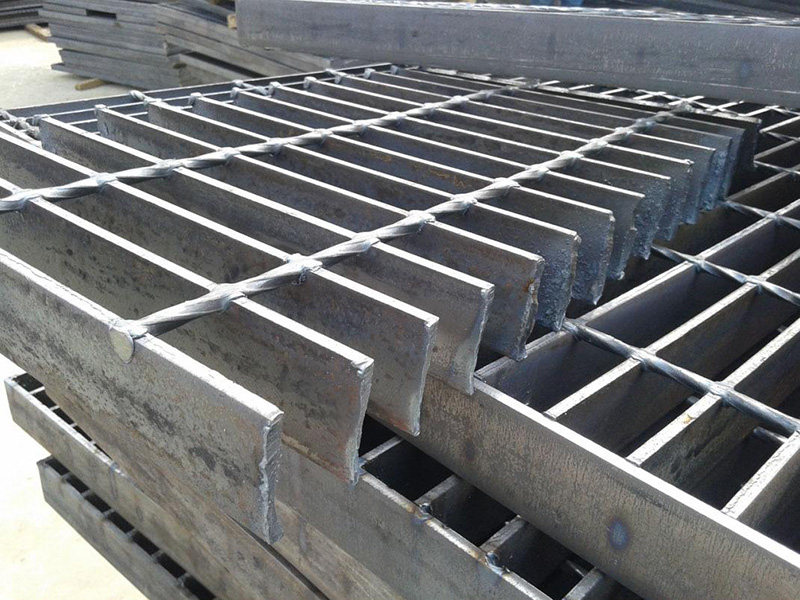

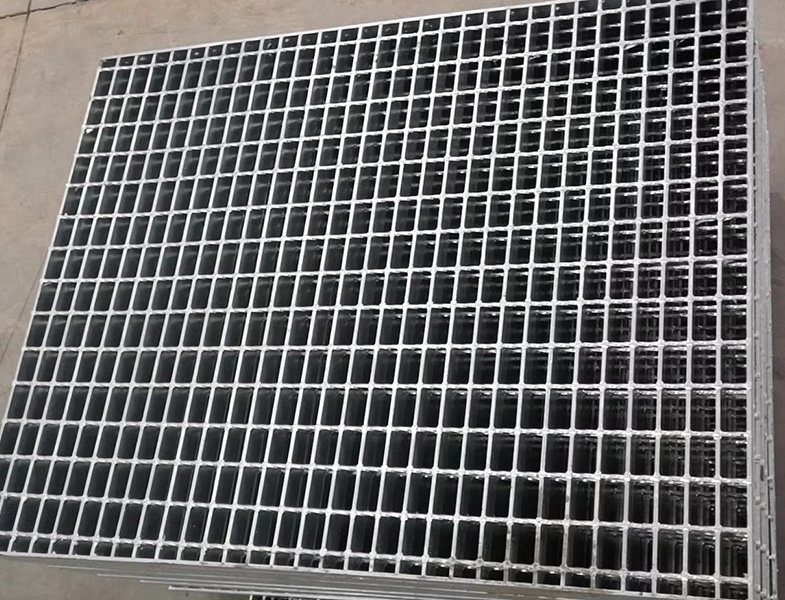

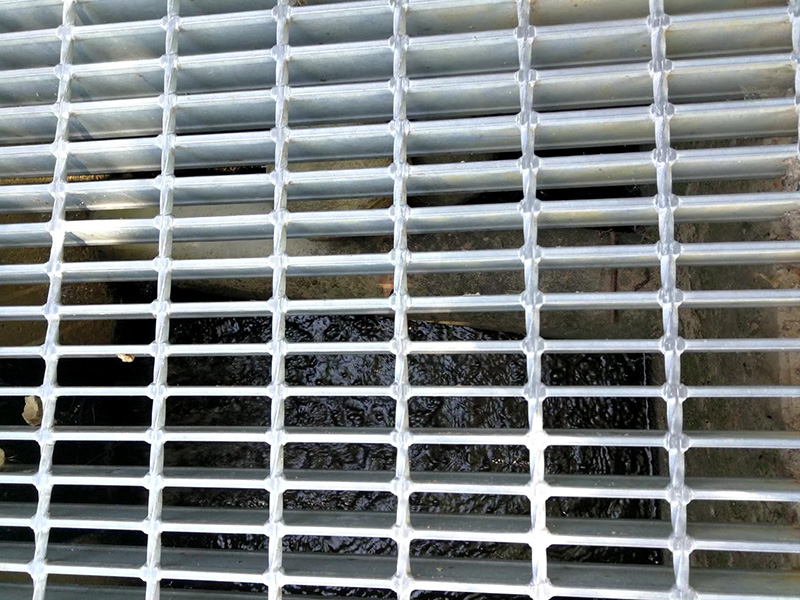

PRODUCT PHOTOS

---

Why Choose Us

---

Competitive Price - Our mature supply chain system, excellent equipment and technology ensure that our products are highly competitive in terms of cost and price.

Superior Quality - Quality supervision on whole process of production from raw materials, manufacturing, packaging, warehousing till container loading.

On-Time Delivery - The mature logistics management system and company self owned freight forwarder ensure that our OTD rate reaches 95%.

Platform steel grating, plug-in steel grating, composite steel grating, serrated steel grating, galvanized steel grating, step plate, trench cover plate
